1 Aug 2026 - 1 hour

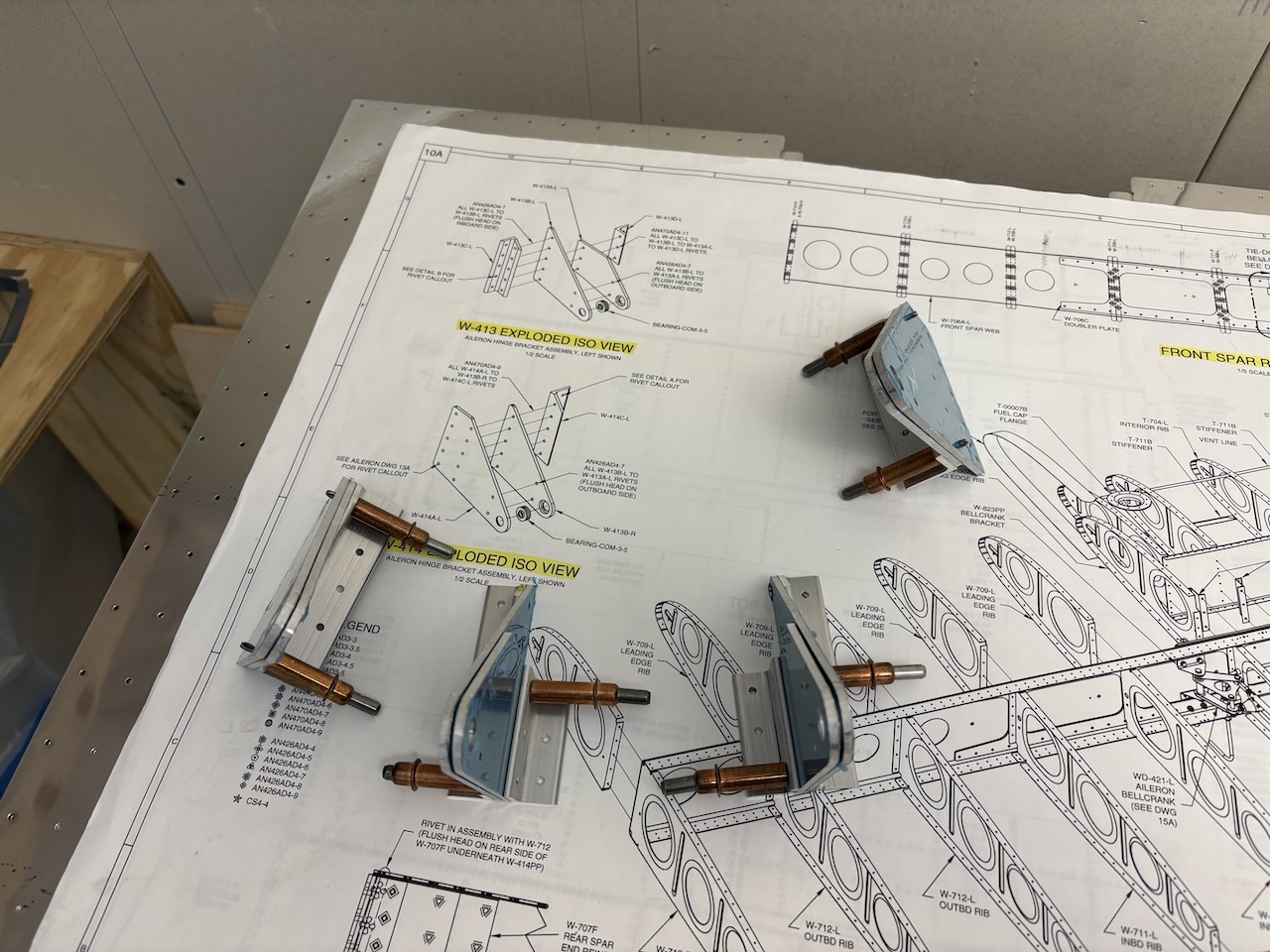

Back at it in the garage, I rummaged around until I found the box where I had been keeping the parts for the aileron attach brackets. It's a bit confusing getting all the part labels and the lefts and rights sorted out using just the two 'exploded iso views' on the drawing but I got there in the end.

Then I spent a fair amount of time deburring the parts and mostly rounding over the ends of the aluminum angle so it would nestle nicely in the radius of the spar bend.

I'll also need to get on the additional stiffeners for the inboard bracket (this is a service bulletin) as well as the aileron gap fairing and flap attach stiffener as I think those all need to fit and go on together.
