13 Oct 2024 - 3 hours

I picked up where I left off last session and made great progress on riveting the left elevator!

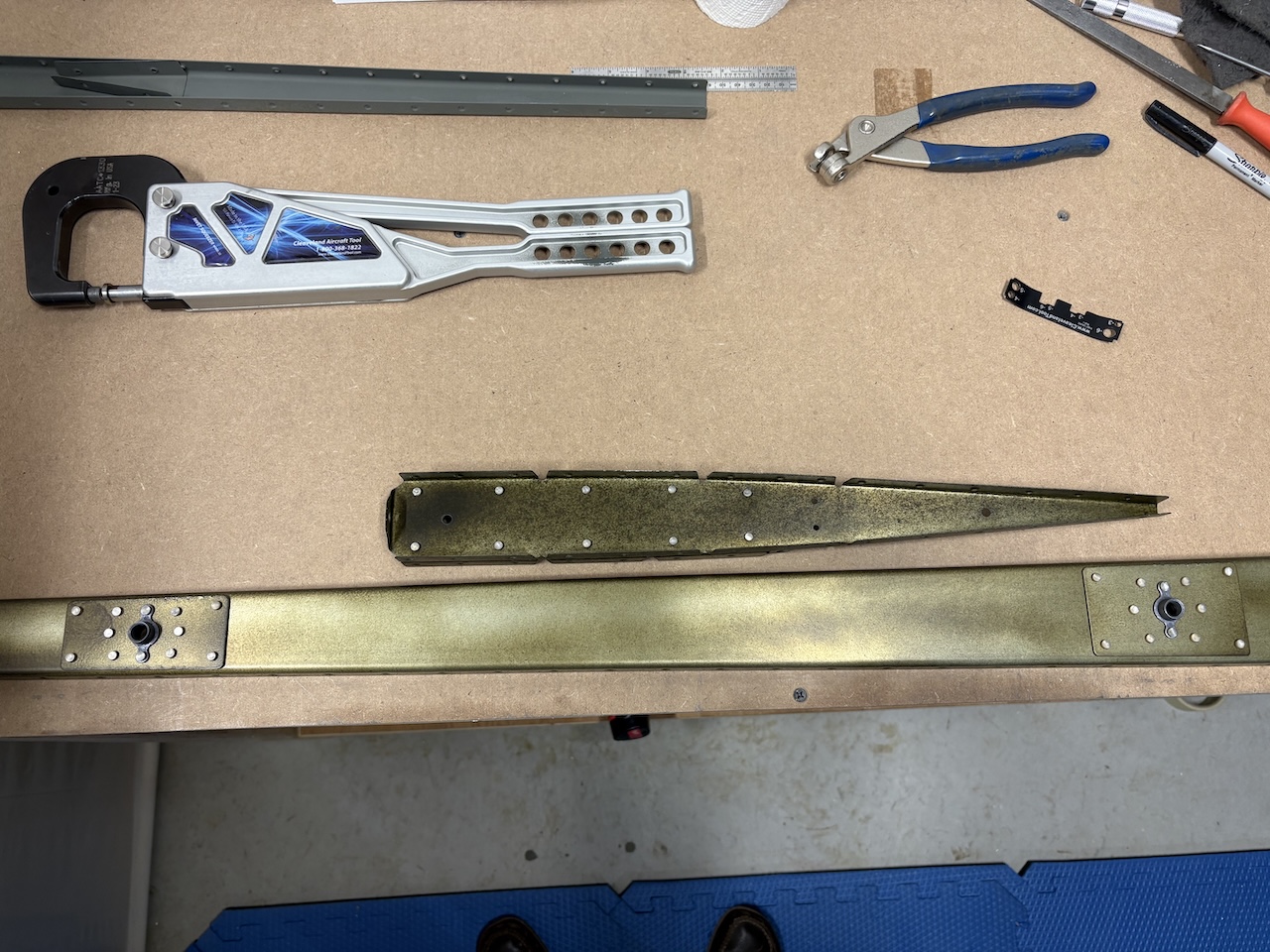

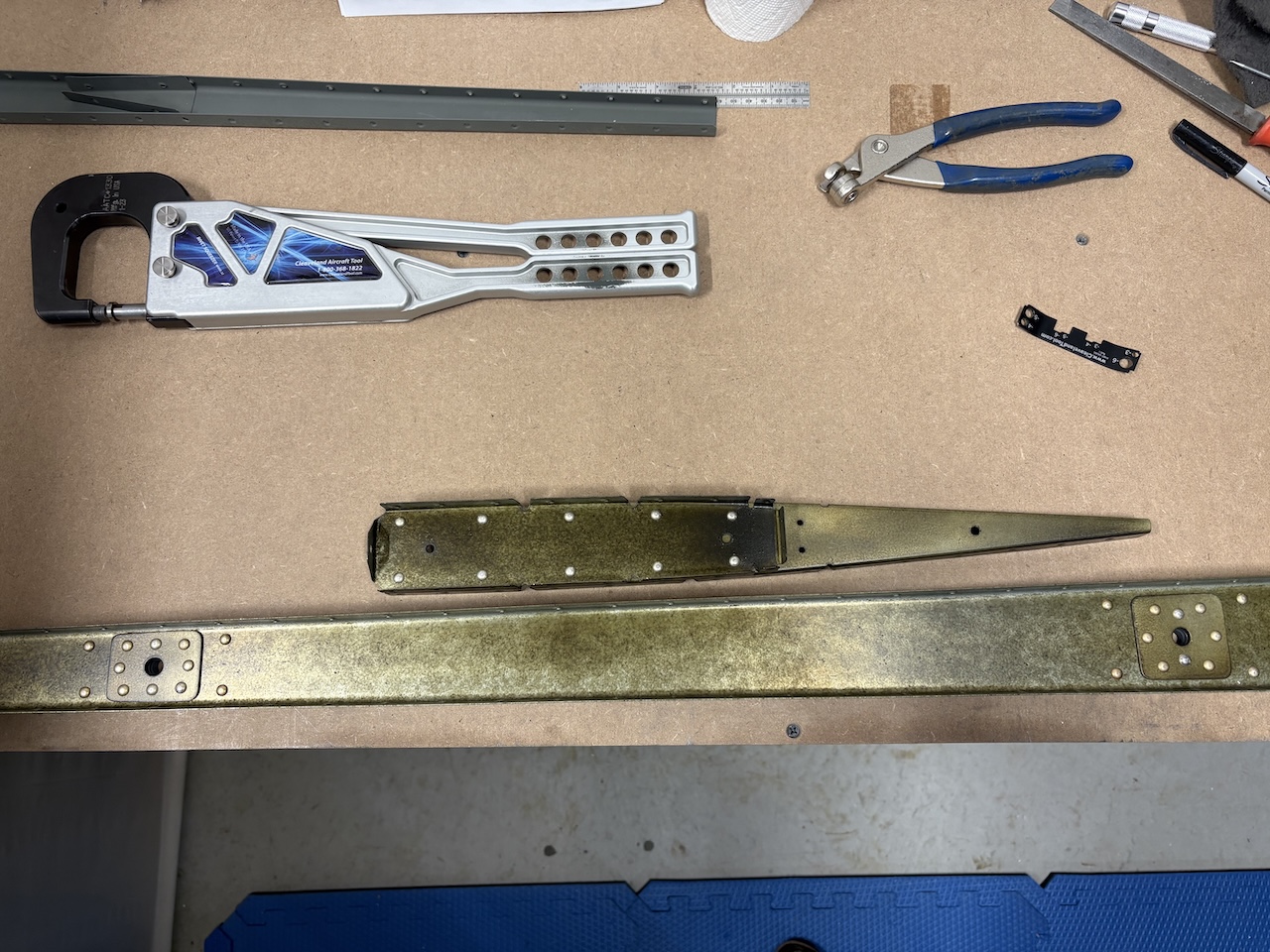

Here are the counterbalance ribs and spar with accoutrements riveted together both front and back.

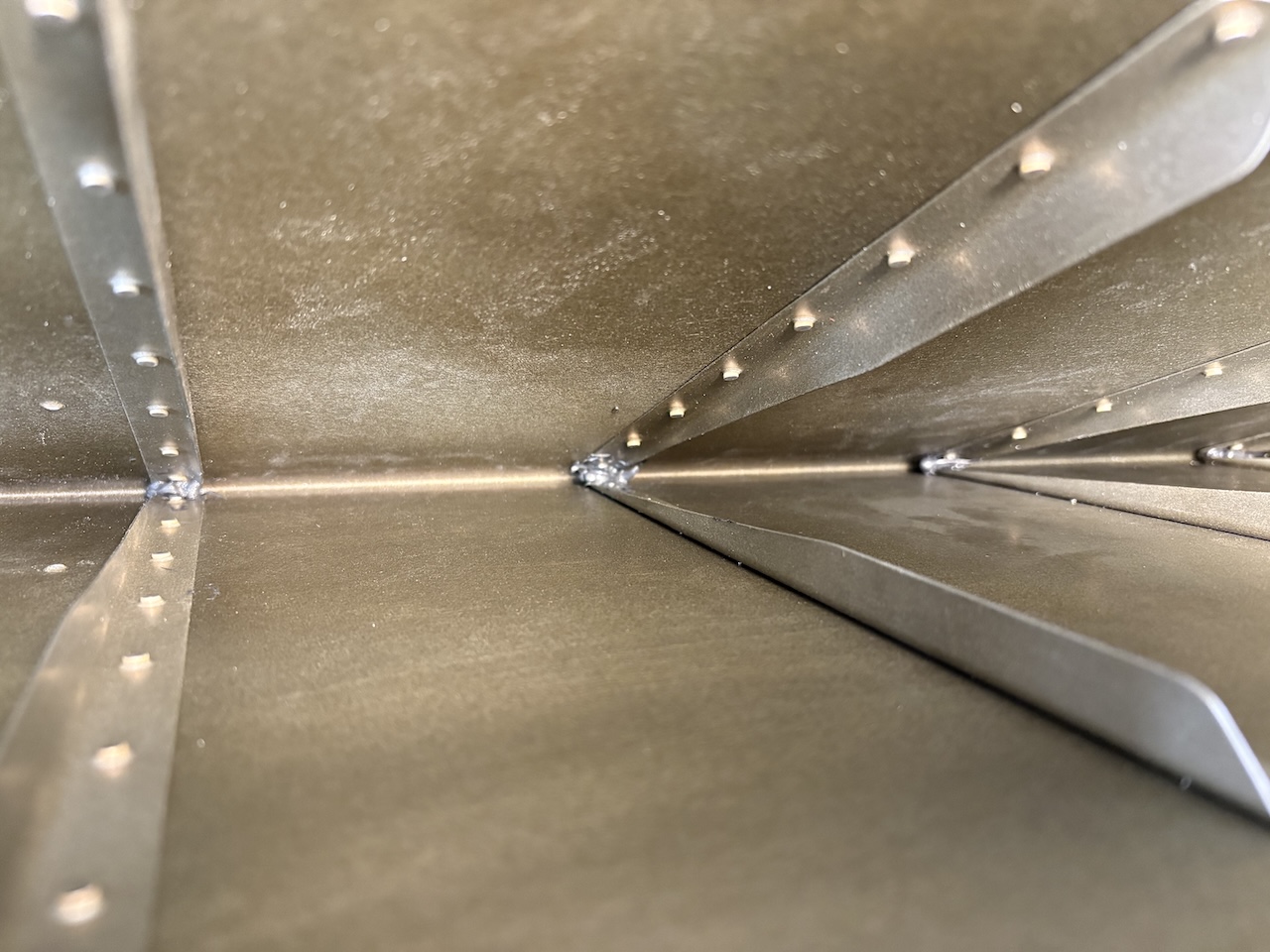

I made sure to get the RTV in the folded trailing edge.

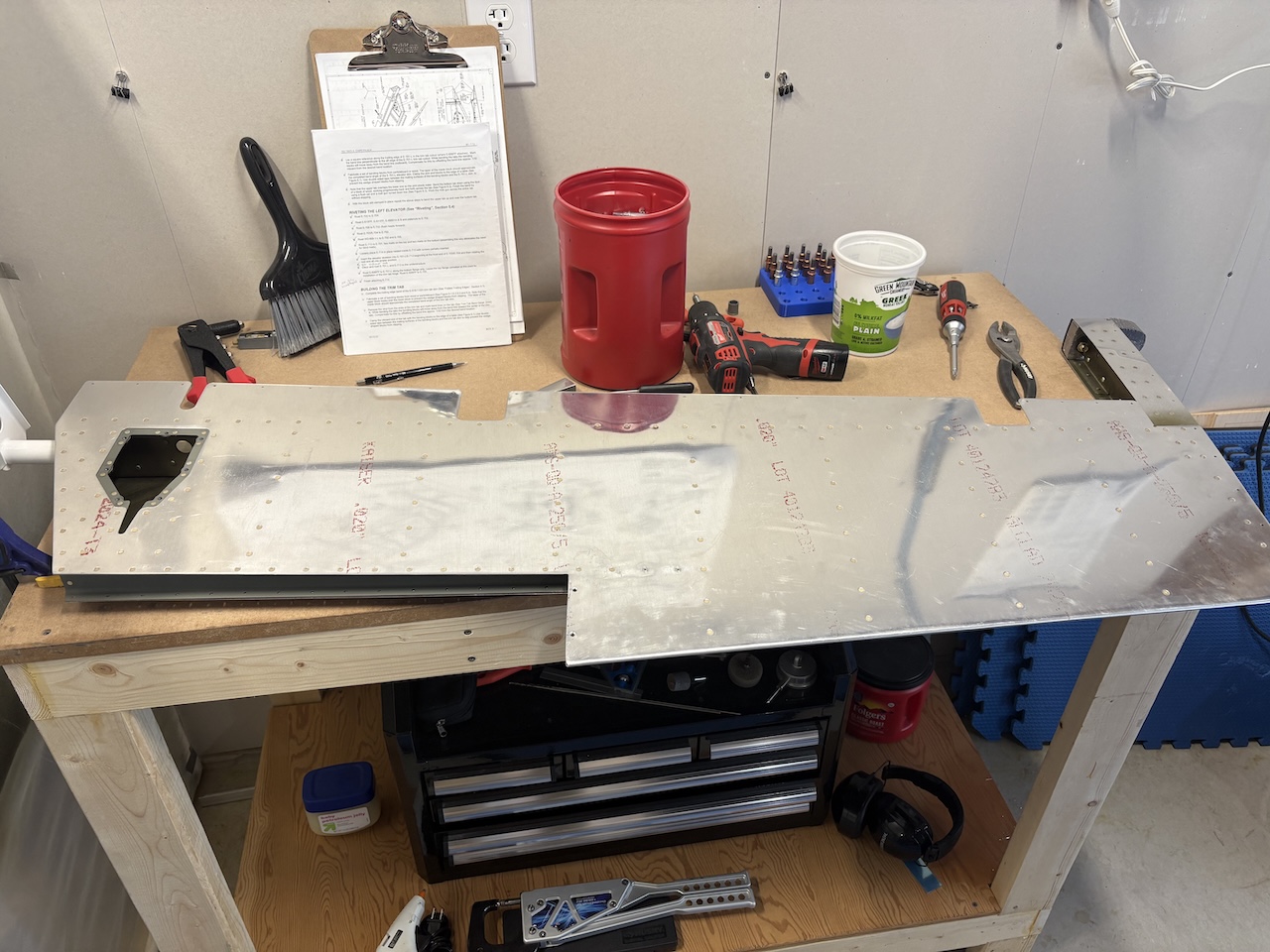

All closed up!

Everything went smoothly. I didn't rivet in the riblet yet on the trim tab cutout and the trim tab cutout spar top doesn't have rivets because that will need the piano hinge drilled first so that will wait until after the trim tab is built. I also need to install the electric trim servo on the access hatch.
